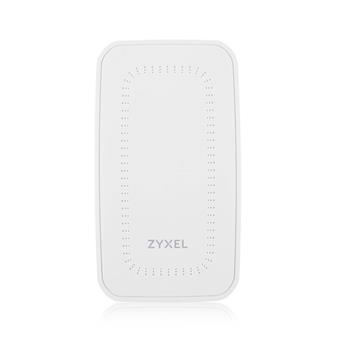

ZYXEL AP WAX300H Single Pack

ZYXEL AP WAX300H Single Pack

Specifications

Wireless
Standard

• IEEE802.11 ax/ac/n/g/b/a

MIMO

• MU-MIMO

Wireless speed

• 2.4GHz: 575 Mbps
• 5GHz: 2400 Mbps

Frequency band

• 2.4 GHz:
• USA (FCC): 2.412 to 2.462 GHz
• Europe (ETSI): 2.412 to 2.472 GHz
• 5 GHz:
• USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
• European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz

Bandwidth

• 20-, 40- ,80- and 160-MHz

Conducted typical transmit output power*1

• US (2.4GHz/5GHz):
• 23/23 dBm
• EU (2.4GHz/5GHz):
• 19/23 dBm

RF Design
Antenna type

• Internal Antenna

Antenna gain

• 2.4 GHz: 3 dBi, 2X2:2SS
• 5 GHz: 4 dBi, 2x2:2SS

Minimum receive sensitivity

• Min. Rx sensitivity up to -99 dBm

WLAN Feature
Band steering, WDS/Mesh*2, DCS, Advanced Cellular Coexistence

• Yes

Fast roaming

• Pre-authentication, PMK caching and 802.11r/k/v

Load balancing

• No

Security
Encryption

• WPA
• WPA2
• WPA3

Authentication

• IEEE 802.1X
• RADIUS anthentication

Access management

• L2-isolation
• MAC filtering
• Rogue AP detection

Networking
IPv6, VLANs, WMM, U-APSD

• Yes

Management
Operating mode

• Nebula cloud managed
• Controller-managed
• Standalone

ZON Utility

• Discovery of Zyxel switches, APs and gateways
• Centralized and batch configurations:
• IP configuration
• IP renew
• Device reboot
• Device locating
• Web GUI access
• Firmware upgrade
• Password configuration

Web UI/CLI

• Yes

SNMP

• No

Physical Specifications
Item

• Dimensions (WxDxH)(mm/in.) - 173 x 97 x 29 / 6.81 x 3.82 x 1.14
• Weight (g/lb.) - 310/0.68

Packing

• Dimensions (WxDxH)(mm/in.) - 195 x 120 x 53 / 7.68 x 4.72 x 2.09

Weight (g/lb.) - 483/1.06
Included accessories

• Multi-purpose mounting bracket with screws

Optional accessories (Sold separately)

• WAC500H-DMNT10F: Desktop mount Kit (10 sets)

MTBF (hr)

• 750,816

Physical Interfaces
Ethernet port

• 1x 10/100/1000M uplink
• 3x 10/100/1000M downlink(including one PoE PSE)

Power

• PoE (802.3at): power draw 19 W(include 5W for PoE PSE)

PoE modes

• IEEE802.3af: Not supported
• IEEE802.3at: Unrestricted
• IEEE802.3bt: -

Environmental Specifications
Operating

• Temperature - 0°C to 50°C/32°F to 122°F
• Humidity - 10% to 90% (non-condensing)

Storage

• Temperature - -40°C to 70°C/-40°F to 158°F
• Humidity - 10% to 90% (non-condensing)

Certifications
Radio

• FCC Part 15C
• FCC Part 15E
• ETSI EN 300 328
• EN 301 893
• LP0002
• EN 60601-1-2

EMC

• FCC Part 15B
• EN 301 489-1
• EN 301 489-17
• EN55022
• EN55024
• EN61000-3-2/-3
• BSMI CNS13438

Safety

• EN 60950-1
• IEC 60950-1
• BSMI CNS14336-1
